Enabling Commander to interoperate with the PowerSDR-IF Panadaptor and CW Skimmer

de Joe W4TV

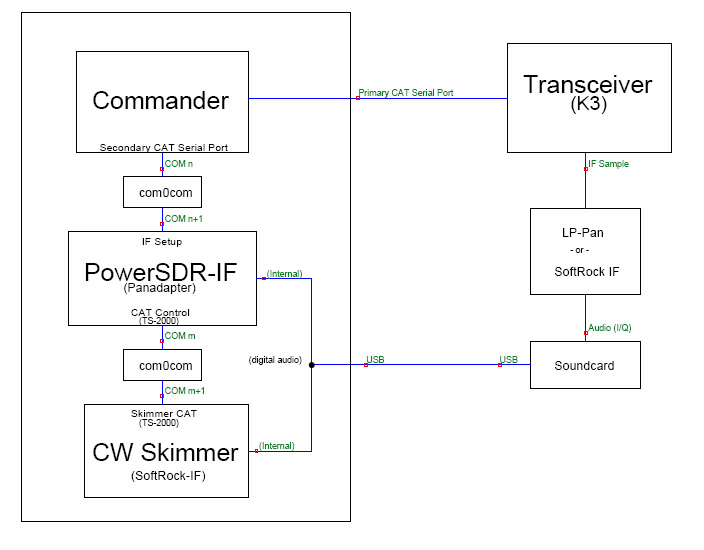

This configuration provides simultaneous IF panadapter and CW Skimmer functionality using WU2X's PowerSDR-IF Stage panadapter. Configured in this way, CW Skimmer controls PowerSDR-IF, and PowerSDR-IF controls your Primary Transceiver via Commander.

http://www.dxlabsuite.com/Wiki/Graphics/Commander/K3SkimmerPanadapter.jpg

  1. connect PowerSDR-IF's IF Setup port to Commander's Secondary CAT Serial Port

    1. establish a connected pair of virtual serial ports using VSP Manager or com0com; these instructions assume that connected virtual ports n and n+1 are created (e.g. 13 and 14)

    2. in the Secondary CAT Serial Port panel on Commander's Configuration window's Ports tab,

      1. set the CAT protocol selector to Kenwood

      2. select Follow & Lead Primary

      3. set the Port# to n

      4. set the Baud selector to 57600, the Word selector to 8, the Parity selector to None, and the Stop selector to 1

      5. check the Enable box

    3. Open PowerSDR-IF's Setup IF menu, and select the PowerSDR/IF Stage Setup window's Rig Connection tab

      1. set the Rig Type selector to Kenwood TS-950

      2. in the Rig Serial Connection panel,

        • set the Port selector to n+1

        • set the Baud selector to 57600, the Parity selector to none, the Data selector to 8, and the Stop selector to 1

      3. in the Rig Timing (ms) panel

        • set the Polling Interval to 250

        • set the Tuning Polling Interval to 250

        • set the Tuning CAT Interval to 250

      4. click the OK button to close the PowerSDR/IF Stage Setup window

  2. connect CW Skimmer's CAT interface to PowerSDR-IF's CAT Control port

    1. establish a connected pair of virtual serial ports using VSP Manager or com0com; these instructions assume that connected virtual ports m and m+1 are created (e.g. 15 and 16)

    2. select CW Skimmer's Command menu and ensure that there is no check mark to the left of the Blind Mode entry

    3. select CW Skimmer's View menu's Settings item to display the Settings window

    4. on CW Skimmer's Settings window's CAT tab,

      1. select Use Radio 1

      2. click the Configure... button

      3. on the Omni-Rig Settings window's RIG 1 tab

        • set the Rig type selector to TS-2000

        • set the Port selector to m+1

        • the Baud rate selector to 57600, the Data bits selector to 8, the Parity selector to None, the Stop bits selector to 1, and the RTS and DTR selector to Low

        • set the Poll int., ms and Timeout, ms selectors to 100

        • click the OK button to the Omni-Rig Settings window

      4. click the OK button to close the Settings window

    5. Open PowerSDR-IF's Setup menu, and select the PowerSDR Setup window's CAT Control tab

      1. check the Enable CAT box

      2. set the Port selector to m

      3. set the Baud selector to 57600, the Parity selector to none, the Data selector to 8, and the Stop selector to 1

      4. set the ID as selector to TS-2000

      5. click the OK button to close the PowerSDR Setup window
